296 Push-on Union/ Hose Splicer

296 Push-on Union/ Hose Splicer

Advantages:
Push‑on Hose Fittings are machined from the
highest quality brass or stainless steel. The barbs are
specifically engineered to work in conjunction with the
l.D. and braid angle of Push‑on Hose, ensuring a tight
connection without clamps.

Assembly:
Push‑on Hose Fittings are designed only for use with
Push‑on Hose. Do not use with any other style or
manufacturer of hose.

Assembly Instructions:
■■ Cut hose cleanly and squarely to length.
■■ Lubricate hose l.D. and barbs with light oil or soapy water.
■■ Push the hose onto the fitting until it bottoms against
     the yellow stop ring. This ensures that all of the
     barbs are engaged with the hose and will also help
     keep the end of the hose from fraying.

Pressure Range
Limited by hose l.D

Reference Part No:
BPM  -  696 -  29SPO  -  915  -  100B-Y  -  KA-RM  -  296  -  729  -  38282

Contact Us

SPECIFICATIONS

PART#

HOSE I.D

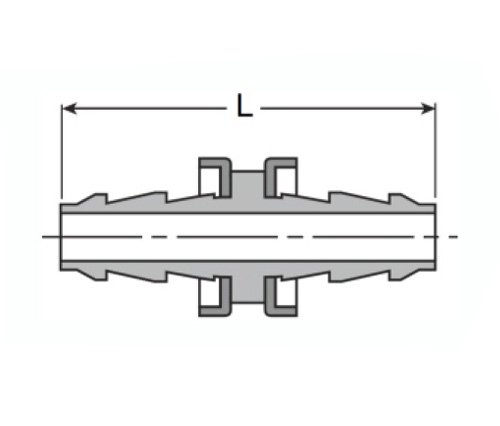

L

296-4

1/4

1.87

296-5

5/16

1.80

296-6

3/8

2.00

296-8

1/2

2.01

296-10

5/8

3.03

296-12

3/4

3.03

296-16

1"

3.21

Push-On Union / Hose Splicer are machined from the highest quality brass or stainless steel. The barbs are specifically engineered to work with Push-On hose, ensuring a tight connection without clamps. Assembly is easy and quick -- just push the hose onto the fitting until it bottoms on the yellow stop ring, this ensures that all of the barbs are engaged with the hose and will also help keep the end of the hose from fraying.
