Push On Hose Barb Rigid Tube Adapter

Push On Hose Barb Rigid Tube Adapter

PUSH ON Advantages
Push‑on Hose Fittings are machined from the
highest quality brass or stainless steel. The barbs are
specifically engineered to work in conjunction with the
l.D. and braid angle of Push‑on Hose, ensuring a tight
connection without clamps.
Assembly
Push‑on Hose Fittings are designed only for use with
Push‑on Hose. Do not use with any other style or
manufacturer of hose.
Assembly Instructions:
1. Cut hose cleanly and squarely to length.
2. Lubricate hose l.D. and barbs with light oil or soapy
water.
3. Push the hose onto the fitting until it bottoms against
the yellow stop ring. This ensures that all of the
barbs are engaged with the hose and will also help
keep the end of the hose from fraying.
4. ! CAUTION: Use of clamps may damage
sealing integrity of Hose and Fitting
Assembly.
Temperature Range
-40°F to 180°F (-40°C to 82°C)
Limited by media through hose assembly
Typical Application:
Low pressure Air,Fuel,Lube,and Oil Lines
Material:C36000

Contact Us

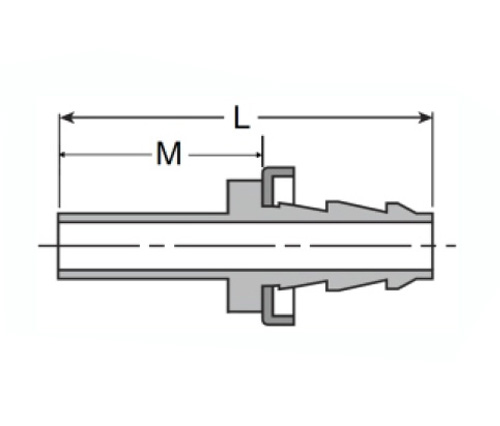

SPECIFICATIONS

Reference Part No:
294  -  100B-X  -  KA-RL  -  303  -  732  -  694

PART#

HOSE I.D × O.D TUBE

M

L

294-4-3

1/4×3/16

.86

1.68

294-4-4

1/4×1/4

1.06

1.88

294-4-5

1/4×5/16

1.06

1.88

294-5-5

5/16×5/16

1.06

1.91

294-6-6

3/8×3/8

1.06

2.03

294-8-8

1/2×1/2

1.06

2.13

294-10-10

1/2×5/8

1.06

2.61

294-12-12

3/4×3/4

1.06

2.61

This rigid Push On Hose Barb Rigid Tube Adapter is machined from the highest quality brass or stainless steel. The barbs are specifically engineered to work in conjunction with the l.D. and braid angle of Push‑on Hose, ensuring a tight connection without clamps.
Push-on hose barbs provide a superior seal without the need for clamps, eliminating leaks, which can occur when using plastic or polyurethane adapters. The Push-on design maintains a connection between the hose and fittings for any medium, including liquids and gases.
Push-On Hose Barb Rigid Tube Adapter is a two part set that allows for easy installation of Push On fittings. This assembly can be used for multiple applications.
