274 Push-on Hose Barb to Female Pipe

274 Push-on Hose Barb to Female Pipe

Advantages:
Push‑on Hose Fittings are machined from the
highest quality brass or stainless steel. The barbs are
specifically engineered to work in conjunction with the
l.D. and braid angle of Push‑on Hose, ensuring a tight
connection without clamps.

Assembly:
Push‑on Hose Fittings are designed only for use with
Push‑on Hose. Do not use with any other style or
manufacturer of hose.

Assembly Instructions:
■■ Cut hose cleanly and squarely to length.
■■ Lubricate hose l.D. and barbs with light oil or soapy water.
■■ Push the hose onto the fitting until it bottoms against
     the yellow stop ring. This ensures that all of the
     barbs are engaged with the hose and will also help
     keep the end of the hose from fraying.

Pressure Range
Limited by hose l.D

Reference Part No:
274  -  726  -  940 -  HLF  -  626  -  29FPO  -  30282

Contact Us

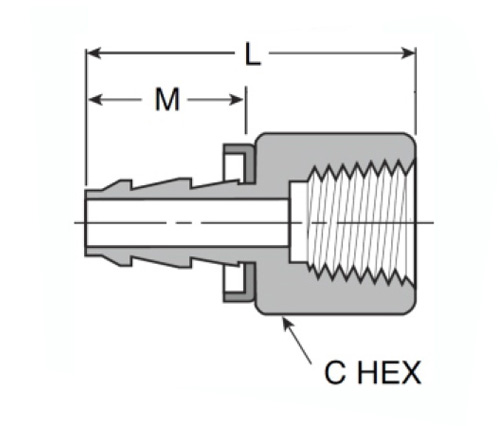

SPECIFICATIONS

PART#

HOSE I.D× FEMALE NPTF

C

M

L

274-4A

1/4×1/8

1/2

.77

1.35

274-4B

1/4×1/4

5/8

.77

1.51

274-4C

1/4×3/8

3/4

.77

1.51

274-5A

5/16×1/8

1/2

.77

1.32

274-5B

5/16×1/4

5/8

.87

1.51

274-6A

3/8×1/8

7/16

.92

1.47

274-6B

3/8×1/4

5/8

.97

1.61

274-6C

3/8X3/8

3/4

.97

1.63

274-6D

3/8×1/2

15/16

.97

1.66

274-8B

1/2×1/4

9/16

.97

1.76

274-8C

1/2×3/8

3/4

.97

1.63

274-8D

1/2×1/2

15/16

.97

1.76

274-8E

1/2×3/4

1-3/16

1.02

2.07

274-10C

5/8×3/8

3/4

1.50

2.24

274-10D

5/8×1/2

15/16

1.50

2.24

274-12D

3/4×1/2

15/16

1.50

2.24

274-12E

3/4×3/4

1-3/16

1.50

2.55

Push-on hose barb fittings are easy to install, no clamps required. Push the barb over the outside diameter of the hose and rotate to tighten. The barb has a square profile which creates a tight seal against the interior surface of the hose wall. The barb is manufactured from brass braided steel or stainless steel one piece construction machined from solid stock without welds or seams.
