272 Push-on Hose Barb to Male Pipe

272 Push-on Hose Barb to Male Pipe

Advantages:
Push‑on Hose Fittings are machined from the
highest quality brass or stainless steel. The barbs are
specifically engineered to work in conjunction with the
l.D. and braid angle of Push‑on Hose, ensuring a tight
connection without clamps.

Assembly:
Push‑on Hose Fittings are designed only for use with
Push‑on Hose. Do not use with any other style or
manufacturer of hose.

Assembly Instructions:
■■ Cut hose cleanly and squarely to length.
■■ Lubricate hose l.D. and barbs with light oil or soapy water.
■■ Push the hose onto the fitting until it bottoms against
     the yellow stop ring. This ensures that all of the
     barbs are engaged with the hose and will also help
     keep the end of the hose from fraying.

Pressure Range
Limited by hose l.D

Reference Part No:
301  -  P990A  -  100B-1  - 272  -  29PO  -  725  -  625  -  941  -  BPN  -  30182

Contact Us

SPECIFICATIONS

Reference Part No:
301  -  P990A  -  100B-1  - 272  -  29PO  -  725  -  625  -  941  -  BPN  -  30182

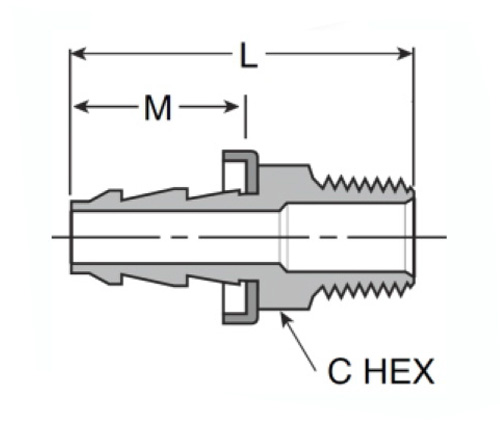

PART#

HOSE I.D×MALE NPTF

C

M

L

272-4A

1/4×1/8

7/16

.82

1.42

272-4B

1/4×1/4

9/16

.82

1.66

272-4C

1/4×3/8

11/16

.82

1.66

272-5A

5/16×1/8

7/16

.77

1.53

272-5B

5/16×1/4

9/16

.87

1.69

272-6A

3/8×1/8

7/16

.97

1.56

272-6B

3/8×1/4

9/16

.97

1.76

272-6C

3/8×3/8

11/16

.97

1.76

272-6D

3/8×1/2

7/8

.97

1.97

272-8B

1/2×1/4

9/16

.97

1.76

272-8C

1/2×3/8

11/16

.97

1.76

272-8D

1/2×1/2

7/8

.97

1.97

272-8E

1/2×3/4

1-1/16

.97

1.97

272-10C

5/8×3/8

11/16

1.50

2.34

272-10D

5/8×1/2

7/8

1.50

2.45

272-12D

3/4×1/2

7/8

1.50

2.87

272-12E

3/4×3/4

1-1/16

1.50

2.45

Push-On Hose Barb fittings are used in the production of Push-On Hose. The barbs are machined from the highest quality brass or stainless steel and specifically engineered to work in conjunction with the ID and braid angle of Push-On Hose, ensuring a tight connection without clamps.
Tap into a new level of convenience and safety with our Push‑on Hose Fitting. This revolutionary design offers you easy installation without any tools and provides a tight, leak-proof connection that can withstand extreme temperatures.
