202 Inverted Flare Fittings Male Connector

Product Features:
■■ All brass construction
■■ UL listed for flammable liquid and gas
■■ Meets functional requirements of SAE J512
■■ Steel nut for economy

Markets: Applications:
■■ Air Conditioning ■■ Refrigerant Lines
■■ Marine ■■ Brake Lines
■■ Mobile ■■ Fuel Lines
■■ Engines

Compatible Tubing:
■■ Copper
■■ Brass
■■ Aluminum
■■ Welded Steel Hydraulic Tubing

Reference Part No:
2200 - 48IFHD - 202 - 48W - 200

SPECIFICATIONS

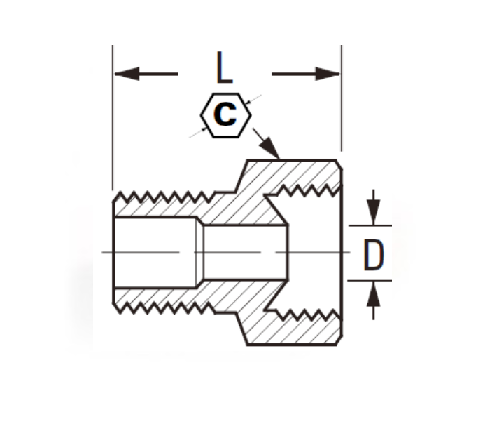

PART#	TUBE O.D × THREAD	C	D	L
202-2A	1/8×1/8	13/32	.078	.62
202-3A	3/16×1/8	15/32	.125	.70
202-4A	1/4×1/8	17/32	.188	.74
202-4B	1/4×1/4	9/16	.188	.89
202-5A	5/16×1/8	19/32	.219	.79
202-5B	5/16×1/4	19/32	.220	.98
202-6A	3/8×1/8	3/4	..281	.89
202-6B	3/8×1/4	3/4	.281	1.03
202-6C	3/8×3/8	3/4	.281	1.01
202-8B	1/2×1/4	29.32	.406	1.08
202-8C	1/2×3/8	29/32	.406	1.07
202-8D	1/2×1/2	29/32	.406	1.26
202-10D	5/8×1/2	1-1/16	.531	1.32
202-12E	3/4×3/4	1-1/4	.625	1.39

*REF.SAE NO.040102 BA

Inverted flare fittings can be used in many applications. These fittings are constructed from brass, which ensures durability and corrosion resistance. Integrated O-ring seals are used to ensure leak-free performance. The SAE fitting also meets SAE J512 requirements for pressurized systems.

We offer a great selection of flare fittings including super-duty, industrial and standard rosebud. Our inverted flare fittings are made from 100% brass, making them ideal for all industrial applications.

Inverted flare fittings are used to connect hoses and tubing to valves or other devices. They consist of a clamp nut, a tube fitting and a locking ring. The clamp nut tightens onto the tubing and holds the tube securely in place and the locking ring prevents the tube from being pulled off while servicing it. The tightening force is great enough that these fittings can be used without PTFE tape but you must still lubricate the threads prior to assembly.
