402 Inverted Flare 90° Male Elbow Fittings

402 Inverted Flare 90° Male Elbow Fittings

Product Features:
■■ All brass construction
■■ UL listed for flammable liquid and gas
■■ Meets functional requirements of SAE J512
■■ Steel nut for economy

Markets:                            Applications:
■■ Air Conditioning          ■■ Refrigerant Lines
■■ Marine                        ■■ Brake Lines
■■ Mobile                        ■■ Fuel Lines
■■ Engines

Compatible Tubing:
■■ Copper
■■ Brass
■■ Aluminum
■■ Welded Steel Hydraulic Tubing

Reference Part No:
4000  -  2400  -  2491IFHD  -  2491IF  -  49W

Contact Us

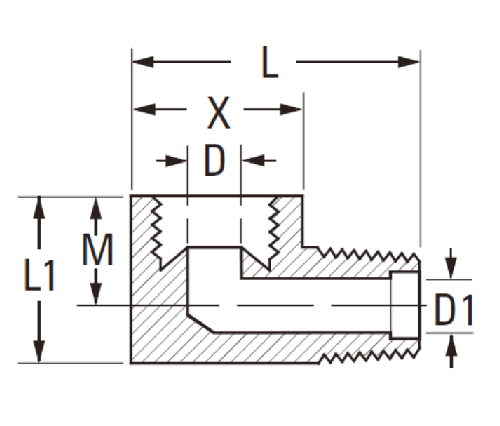

SPECIFICATIONS

PART#

TUBE O.D × MALE THREAD

X

D

L

402-2A

1/8×1/8 .42 .078 .80

402-3A

3/16×1/8 .47 .125 .70

402-4A

1/4×1/8 .53 .188 .74

402-4B

1/4×1/4 .56 .188 .89

402-5A

5/16×1/8 .59 .219 .79

402-5B

5/16×1/4 .59 .220 .98

402-6A

3/8×1/8 .76 .281 .89

402-6B

3/8×1/4 .76 .281 1.03

402-6C

3/8×3/8 .75 .281 1.01

402-8B

1/2×1/4 .91 .406 1.08

402-8C

1/2×3/8 .92 .406 1.07
402-8D 1/2×1/2 .91 .406 1.26
402-10D 5/8×1/2 1.06 .531 1.32

*REF.SAE NO.040202 BA
