352 Brass Inverted Flare 45° Male Elbow

352 Brass Inverted Flare 45° Male Elbow

Product Features:
■■ All brass construction
■■ UL listed for flammable liquid and gas
■■ Meets functional requirements of SAE J512
■■ Steel nut for economy

Markets:                            Applications:
■■ Air Conditioning          ■■ Refrigerant Lines
■■ Marine                        ■■ Brake Lines
■■ Mobile                        ■■ Fuel Lines
■■ Engines

Compatible Tubing:
■■ Copper
■■ Brass
■■ Aluminum
■■ Welded Steel Hydraulic Tubing

Reference Part No:
154  -  2352  -  259IFHD  -  352  -  94W

Contact Us

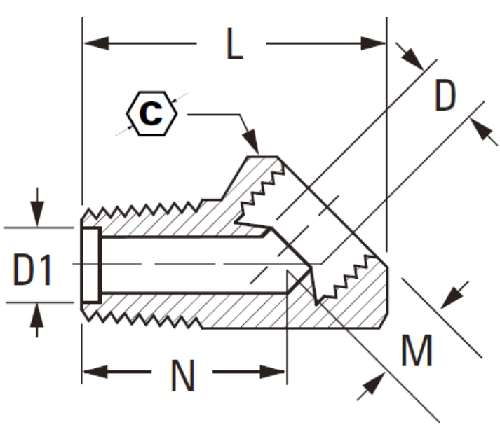

SPECIFICATIONS

PART#

TUBE O.D × THREAD

C

D

L

352-3A

3/16×1/8 17/32 .125 .88

352-4A

1/4×1/8 9/16 .188 .94

352-5A

5/16×1/8 5/8 .219 1.00

352-5B

5/16×1/4 5/8 .219 1.16

352-6B

3/8×1/4 25/32 .281 1.34

352-8C

1/2×3/8 7/8 .406 1.44

*REF.SAE NO.040302 BA

The 352 Brass Inverted Flare 45° Male Elbow (SAE J512) is designed for use in air conditioning, refrigerant lines, marine and mobile applications. This elbow has a male flare fitting with a slip-on nut for easy installation. The SAE J512 male 45 degree flare elbow is constructed of all brass except for the steel nut which provides durability and affordability.
The 352 Brass Inverted Flare 45° Male Elbow is designed for gases and liquids, and meets functional requirements of SAE J512 in size 1/8" through 1”. Measuring .94” in outside diameter.
This 3⁄16-inch tube fitting and offers a 45˚ elbow bend.  This fitting is suitable for standard air conditioning, refrigeration and hydraulic applications, as well as mobile or marine industries.
