HOSE I.D 5/8 Beaded Hose Barb Pipe Fitting

HOSE I.D 5/8 Beaded Hose Barb Pipe Fitting

HOSE I.D 5/8 Beaded Hose Barb Pipe Fitting 168

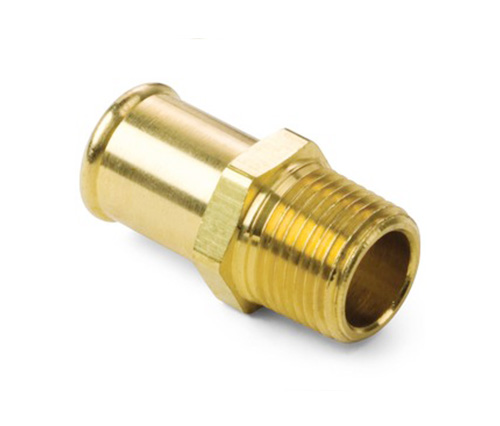

Beaded Hose Barb to Male Pipe is suitable for a broad range of applications, including automotive, industrial, and commercial. This fitting is made from high-quality 360 Brass and is manufactured in the United States to ISO 9001 quality specifications. Please see the below table for part specifications. All fittings have 4 Barbs except as noted.

Typical Application:
Temperature control circuits,pneumatic circuits, vacuum and fluid systems
test apparatus, lubricant, coolant lines

Pressure:
Will withstand burst pressures of plastic tubing

Reference Part No:

Contact Us

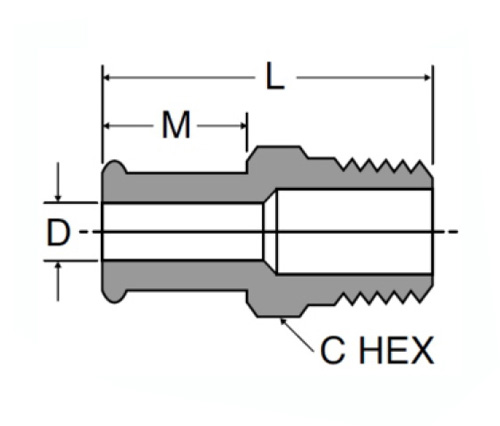

HOSE I.D 5/8 Beaded Hose Barb Pipe Fitting DETAILS

PART#

HOSE I.D×MALE THREAD

C

D

M

L

168-6C

3/8×3/8

11/16

.281

.78

1.53

168-8B

1/2×1/4

5/8

.375

.78

1.56

168-8C

1/2×3/8

11/16

.406

.78

1.53

168-8D

1/2×1/2

7/8

.406

.79

1.73

168-10C

5/8×3/8

3/4

.501

.88

1.62

168-10D

5/8×1/2

7/8

.501

.88

1.92

168-12D

3/4×1/2

7/8

.564

.88

1.98

168-12E

3/4×3/4

1-1/16

.564

.97

2.04

168-16E

1"×3/4

1-1/8

.750

1.00

2.12

168-16H

1"×1"

1-3/8

.812

1.00

2.31
