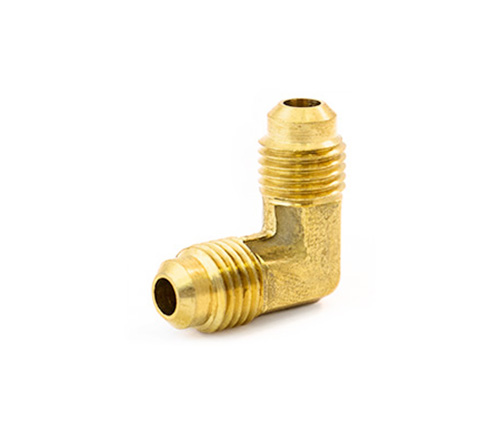

SAE Forged 90 Degree Elbow Flare Fittings

SAE Forged 90 Degree Elbow Flare Fittings

SAE Forged 90 Degree Elbow Flare Fittings 55

Typical Application:
LP and natural gas,flammable liquids,instrumentation,
refrigeration,power steering,hydraulic and pneumatic systems

Used on low, medium and high pressure lines under the most adverse conditions, compatible with copper, brass, aluminum and steel hydraulic tubing that can be flared.

Conformance:
Meets specifications and standards of ASA,ASME and SAE.

Reference Part No:
E2  -  155F  -  55  -  10044 to 10412

Contact Us

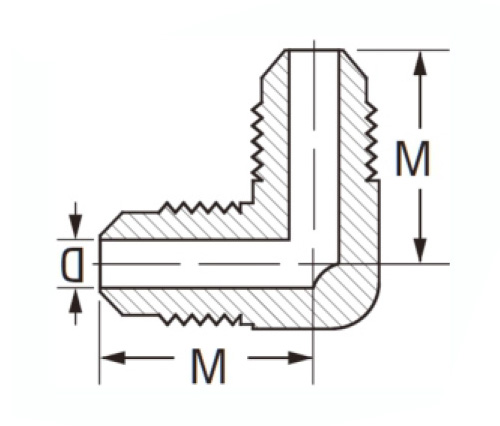

SAE Forged 90 Degree Elbow Flare Fittings DETAILS

PART#

TUBE O. D

C

D

L

55-2

1/8

3/8

.079

.64

55-3

3/16

3/8

.126

.73

55-4

1/4

3/8

.189

.81

55-5

5/16

7/16

.220

.92

55-6

3/8

7/16

.282

1.04

55-8

1/2

9/16

.408

1.31

55-10

5/8

11/16

.502

1.39

5512

3/4

7/8

.627

1.53

55-6×4

3/8×1/4

7/16

/

/

55-8×6

1/2×3/8

7/16

/

/

55-10×8

5/8×1/2

11/16

/

/

*DIMENSION DATA CAN CHANGE WITHOUT NOTICE

*Ref.SAE.No.010201
