Brass Air Brake Tube Fitting Bulkhead Union 1474
This compression tube fitting is made of type Brass, and mounts on a wall or bulkhead to connect tubing through a barrier. This coupling is for a fixed connection between tubing made of stainless steel. A twin ferrule compression fitting connects to tubing on one end for a leak-resistant seal in high-pressure, high-vacuum, and high-vibration applications. This fitting is made of chemically hardened type Brass that provides higher strength and greater corrosion resistance than untreated stainless steel. It is commonly used in chemical, petroleum, power generation, laboratory, and medical device plants.

Contact Us

Air Brake Tube Fitting Bulkhead Union DETAILS

Typical Application:
NT100 Nylon Tubing - SAE J844 Type A and B.

Conformance:
Meets specifications and standards of SAE and DOT FMVSS 571.106

Reference Part No:
62NBH  -  475  -  1474  -  62NBAH  -  SS774AB

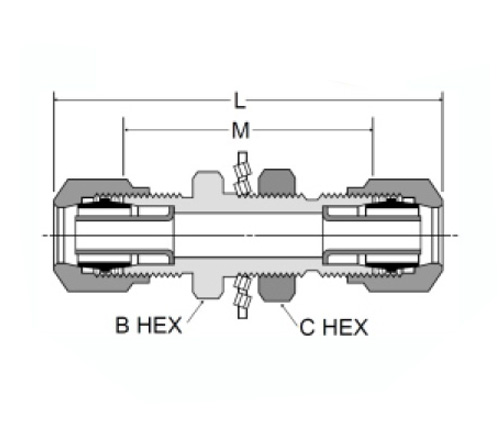

PART#

TUBE SIZE

C

B

M

1474-4

1/4

9/16

9/16

1.38

1474-6

3/8

3/4

11/16

1.62

1474-8

1/2

1"

13/16

1.88

1474-10

5/8

1"

15/16

2.02
