1468# Air Brake Nylon Tubing Male Connector

Product Features:
■■ Brass Body
■■ Meets D.O.T. FMVSS571.106 Performance
■■ Meets functional Requirements SAE J246 & SAE J1131
■■ Pre-applied Thread Sealant

Markets:
■■ Heavy Duty Truck
■■ Trailer
■■ Mobile

Applications:
■■ Air Brakes
■■ Air Tanks
■■ Air Ride
■■ Sliders
■■ Tire Inflation
■■ Primary & SecondaryAir Lines
■■ Cab Controls

Reference Part No:
68NAB - 68NTA - 1468 - S768AB

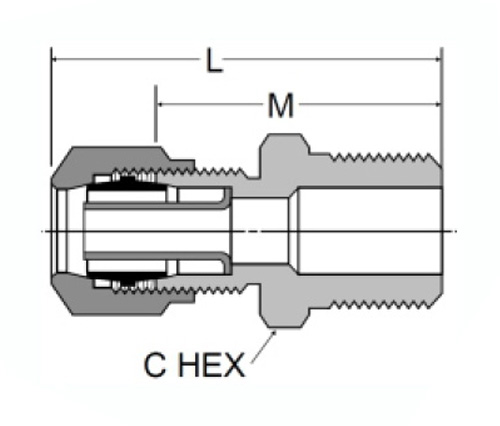

SPECIFICATIONS

PART#	TUBE O.D × MALE NPTF	C	M
1468-4A	1/4×1/8	7/16	.88
1468-4B	1/4×1/4	9/16	1.09
1468-4C	1/4×3/8	11/16	1.12
1468-6A	3/8×1/8	9/16	1.02
1468-6B	3/8×1/4	9/16	1.20
1468-6C	3/8×3/8	11/16	1.23
1468-6D	3/8×1/2	7/8	1.42
1468-8B	1/2×1/4	11/16	1.32
1468-8C	1/2×3/8	11/16	1.32
1468-8D	1/2×1/2	7/8	1.51
1468-10C	5/8×3/8	13/16	1.38
1468-10D	5/8×1/2	7/8	1.57
1468-10E	5/8×3/4	1-1/16	1.63
1468-12D	3/4×1/2	1"	1.67
1468-12E	1/2×3/4	1-1/16	1.70

*Ref.SAE No.100102BA

Air Brake Nylon Tubing Male Connector, this part is used on heavy duty vehicles with air brakes such as trucks and trailers. The product has a brass body, is pre-applied with thread sealant and meets DOT FMVSS571.106 performance along with functional requirements SAE J246 & SAE J1131.

Air Brake Compression Fittings in all applications and sizes. From 3/8" to 1-1/2". Brass body, pre-applied thread sealant. The fittings are listed by DOT FMVSS 571.106 standard, SAE J246 & SAE J1131 functional Requirements, with SBT Mark on it.

Air Brake Nylon Tubing Male Connector is a high quality industry standard fitting. This plastic fitting is constructed from a combination of nylon, brass and stainless steel materials. It meets DOT FMVSS-571.106 performance requirements and SAE J246 & SAE J1131 functional requirements.
