1466# Air Brake Nylon Tubing  Female Connector

1466# Air Brake Nylon Tubing Female Connector

Product Features:
■■ Brass Body
■■ Meets D.O.T. FMVSS571.106 Performance
■■ Meets functional Requirements SAE J246 & SAE J1131
■■ Pre-applied Thread Sealant


Markets:
■■ Heavy Duty Truck
■■ Trailer
■■ Mobile


Applications:
■■ Air Brakes
■■ Air Tanks
■■ Air Ride
■■ Sliders
■■ Tire Inflation
■■ Primary & SecondaryAir Lines
■■ Cab Controls

Reference Part No:
66NAB  -  66NTA  -  1466 -  66NBH

Contact Us

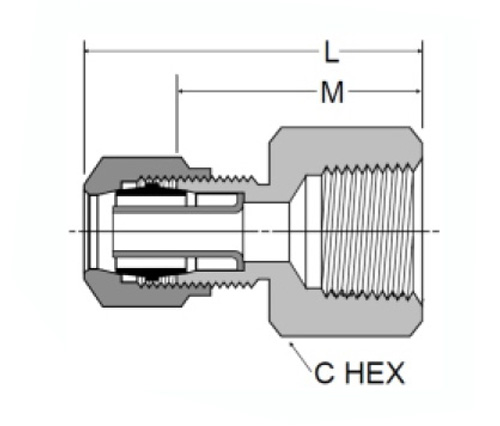

SPECIFICATIONS

PART# TUBE×Female NPTF C L
1466-4A 1/4×1/8 9/16 .84
1466-4B 1/4×1/4 11/16 1.07
1466-6A 3/8×1/8 9/16 1.00
1466-6B 3/8×1/4 11/16 1.18
1466-6C 3/8×3/8 7/8 1.18
1466-8C 1/2×3/8 7/8 1.27
1466-8D 1/2×1/2 1-1/16 1.44
1466-10C 5/8×3/8 7/8 1.31
1466-10D 5/8×1/2 1-1/16 1.50

Our air brake tubing is made from the highest quality 316 stainless steel. The fittings are pre-applied with thread sealant, which is the best available on the market. It has been tested in both laboratory and field environments, and meets or exceeds DOT FMVSS-571.106 performance requirements and SAE J246 & SAE J1131 functional requirements.
Air Brake Nylon Tubing from Klune is an essential component of all hydraulic systems. Designed for use with air brake applications, this tube was designed to meet FMVSS 571.106 performance requirements and features a brass body with pre-applied thread sealant.
The NPTFCL1466-4A1 is a straight butt conector that features 3/8 in. pipe thread on each end, with a 1/16 in. nut included per side.
