1469# Air Brake Nylon Tubing Male Elbow

1469# Air Brake Nylon Tubing Male Elbow

Product Features:
■■ Brass Body
■■ Meets D.O.T. FMVSS571.106 Performance
■■ Meets functional Requirements SAE J246 & SAE J1131
■■ Pre-applied Thread Sealant


Markets:
■■ Heavy Duty Truck
■■ Trailer
■■ Mobile


Applications:
■■ Air Brakes
■■ Air Tanks
■■ Air Ride
■■ Sliders
■■ Tire Inflation
■■ Primary & SecondaryAir Lines
■■ Cab Controls

Reference Part No:

69NAB    -  1469  -  S769AB

Contact Us

SPECIFICATIONS

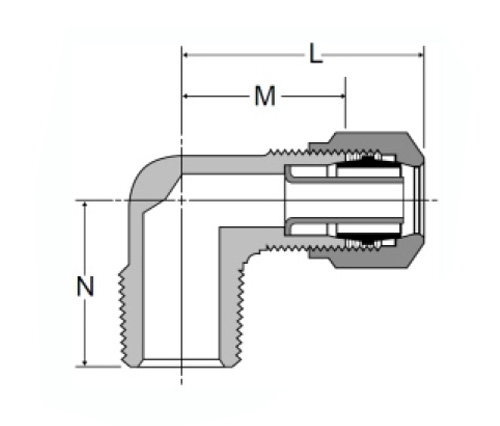

PART# TUBE  O.D ×  MALE  NPTF M N
1469-4A 1/4×1/8 .59 .64
1469-4B 1/4×1/4 .68 .87
1469-4C 1/4×3/8 .73 .86
1469-6A 3/8×1/8 .73 .75
1469-6B 3/8×1/4 .73 .87
1469-6C 3/8×3/8 .74 .87
1469-6D 3/8×1/2 .88 1.05
1469-8B 1/2×1/4 .81 .93
1469-8C 1/2×3/8 .92 .95
1469-8D 1/2×1/2 1.03 1.18
1469-10C 5/8×3/8 1.00 1.05
1469-10D 5/8×1/2 1.09 1.25
1469-10E 5/8×3/4 1.25 1.32
1469-12D 3/4×1/2 1.19 1.33
1469-12E 3/4×3/4 1.26 1.32

*Ref.SAE No.100202 BA

Brass Body, Meets D.O.T. FMVSS571.106 Performance, Meets functional Requirements SAE J246 & SAE J1131, Pre-applied Thread Sealant Markets: Heavy Duty Truck, Trailer, Mobile Applications: Air Brakes, Air Tanks, Air Ride, Sliders, Tire Inflation, Primary & SecondaryAir Lines, Cab Controls
Air Brake hoses are manufactured from tough nylon reinforced with a steel wire helix and a single ply tube in order to meet the requirement of the Association of American Railroads (AAR) Specification 100202. These Air Brake Hose meet the requirements of DOT FMVSS571.106 in regard to pressure, temperature and resistance to rupture.
An elbow is a standard item used in the Air Brake industry. It provides a 90-degree turn in air brake tubing to a male or female connection (pipe). It has a brass body, metallurgy cylinders and thread.
