Push In Metric Elbow Union 1665

Society of Metric Elbow Union (SAE) 90-degree male 45-degree elbow for connecting a tube to a female pipe thread at a 90-degree angle
Male SAE 45-degree threads on one end and male pipe threads on the other end for connecting two threaded pipes
Brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability
Standard duty for light to medium pressure applications
Military standard MIL-F-18866 compliant, Society of Automotive Engineers standard SAE J514 compliant for 37-degree JIC fla

Typical Application:
Air systems

Conformance:
DIN74324 Metric tube and fittings

SPECIFICATIONS

Reference Part No:
974511

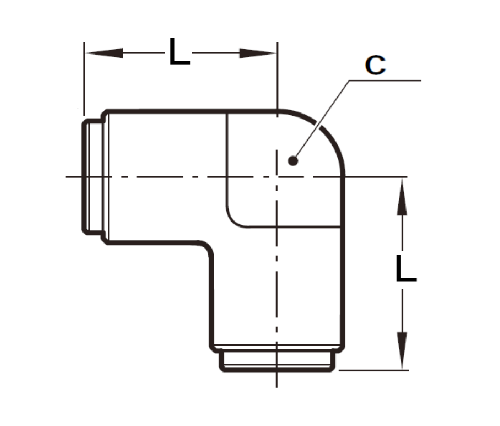

PART#	TUBE O.D	C	L
1665-060	6.0	10.0	21.0
1665-080	8.0	11.0	23.0
1665-010	10.0	14.0	27.0
1665-012	12.0	16.0	32.0
1665-015	15.0	27.0	38.5
1665-016	16.0	27.0	39.0

The Push In Metric Elbow Union 1665 is a society of metric elbow union that has male SAE 45-degree threads on one end and male pipe threads on the other end for connecting two threaded pipes. Made from brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability, it is standard duty for light to medium pressure applications.

The Society of Automotive Engineers (SAE) 90-degree male 45-degree elbow is typically used for connecting a tube to a female pipe thread at a 90-degree angle. This fitting has male SAE 45-degree threads on one end and male pipe threads on the other end for connecting two threaded pipes. Brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability.
