Dot Push In Metric Union 1662

Type: Push in fitting/Push to connect ;
Size:6mm 8mm 10mm 12mm 14mm 16mm Straight Union Connector
Fluid Admitted: Air Vacuum Water (no freezing)
Working Pressure:0-1.0MPa | 0-150psi
Applicable Tube: PU / PA / PE / PVC

Typical Application:
Air systems

Conformance:
DIN74324 Metric tube and fittings

SPECIFICATIONS

Reference Part No:
974503

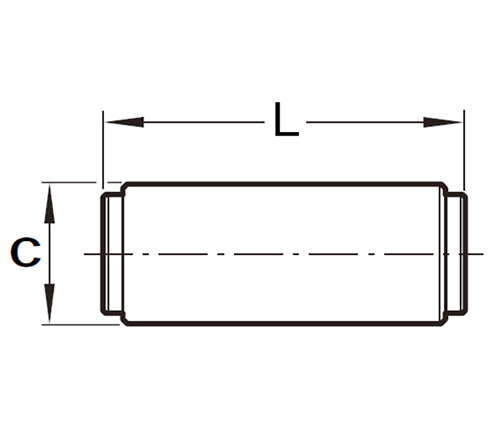

PART#	TUBE O.D	C	L
1662-060	6.0	13.0	37.0
1662-080	8.0	15.0	37.6
1662-010	10.0	17.0	44.5
1662-011	11.0	19.0	46.2
1662-012	12.0	20.5	51.5

DOT Push In Fittings are precision made from the highest grade stainless steel to assure a superior leak proof seal. The fittings are compatible with air, water, oil and vacuum. They can be easily assembled (installed) by hand or using elbow grease alone, eliminating the need for special tools or expensive machines.

DOT push in metric joints are used for most pneumatic systems, including air, oil and water. The tube fits into a groove in the fitting and is pushed onto the connector to create a leak-proof seal. This is an alternative to using flare fittings, which require special tools and skills for installation.
