1470# Air Brake Nylon Tubing Female Elbow

Product Features:
■■ Brass Body
■■ Meets D.O.T. FMVSS571.106 Performance
■■ Meets functional Requirements SAE J246 & SAE J1131
■■ Pre-applied Thread Sealant

Markets:
■■ Heavy Duty Truck
■■ Trailer
■■ Mobile

Applications:
■■ Air Brakes
■■ Air Tanks
■■ Air Ride
■■ Sliders
■■ Tire Inflation
■■ Primary & SecondaryAir Lines
■■ Cab Controls

Reference Part No:
70NAB - 270NTA - 1470 - S770AB

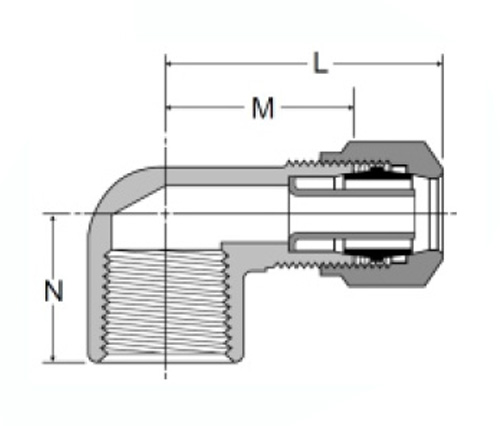

SPECIFICATIONS

PART#	TUBE O.D × FEMALE NPTF	M	N
1470-4A	1/4×1/8	.59	.64
1470-4B	1/4×1/4	.68	.87
1470-6A	3/8×1/8	.73	.75
1470-6B	3/8×1/4	.73	.87
1470-6C	3/8×3/8	.74	.87
1470-8C	1/2×3/8	.92	.95
1470-8D	1/2×1/2	1.03	1.18

*Ref.SAE No.100203 BA

The Air Brake Nylon Tubing FEMALE ELBOW is designed to fit a range of applications and materials including air lines, cab controls and more. This brass body fitting meets FMVSS571.106 performance requirements and an easy-to-install pre-applied thread sealant makes it ready for use right out of the box.

Designed for use with hydraulic brake lines and air lines, this flare-less female elbow makes it easy to make a connection in your system. It's constructed of heavy duty brass, epoxy coated and pre-applied with thread sealant.

Made from premium nylon materials, the female air brake elbow is made to meet DOT FMVSS175 specifications. The part is supplied with a pre-installed thread sealant to ensure leak-free performance.

These straight, machined-brass fittings are ideal for use in air brake systems and other industrial applications. The 90-degree elbow is available with a range of female and male end configurations, as well as straight and right-angle ends.
