Compression Fittings Male Branch Tee  72

Typical Application:
Use with copper,aluminum and thermoplastic tub-ing.Not recommended
for steel tubing .Manufactured for low and medium pressure tubing
connection work where excessive  vibration or tube movement is not
involved.Not recommended for application using gas eous media

Conformance:
Meets specifications and standards of ASA, ASME asn SAE

Reference Part No:
72  -  172C  -  S72  -  72A

Contact Us

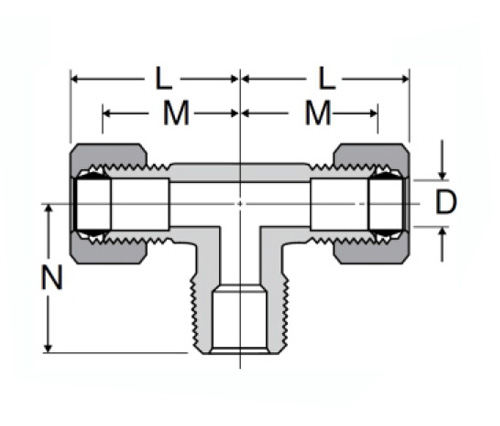

Compression Fittings Male Branch Tee DETAILS

PART#

TUBE O.D× MALE NPTF

M

N

D

72-3A

3/16×1/8

.63

.69

.125

72-4A

1/4×1/8

.63

.75

.188

72-4B

1/4×1/4

.69

.88

.188

72-5A

5/16×1/8

.72

.75

.250

72-5B

5/16×1/4

.75

.88

.250

72-6A

3/8×1/8

.75

.75

.312

72-6B

3/8×1/4

.79

.87

.312

72-6C

3/8×3/8

.88

1.00

.330

72-8C

1/2×3/8

.94

1.09

.406

72-8D

1/2×1/2

.97

1.19

.406

72-10D

5/8×1/2

1.06

1.31

.500
