Female Thread Reducer Bushing 2521

Typical Application:
Grease,refrigeration,instrumentation and hydraulic systems.fuel

Advantages:
Dryseal pipe threads (BSPT(R)/BSP(G).Large range of sizes and configurations

SPECIFICATIONS

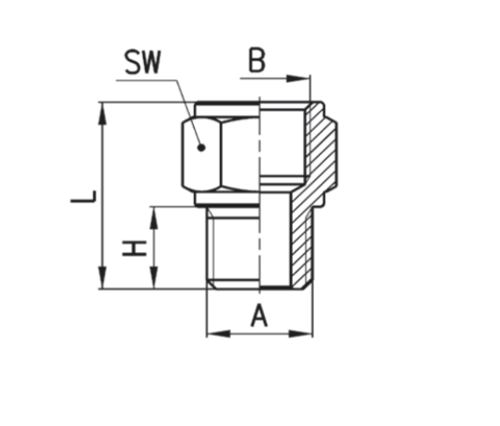

PART#	Thread size A×B	S.W	L	H
2521-M5A	M5×1/8	13	14	4
2521-AA	1/8×1/8	13	16	6
2521-AB	1/8×1/4	17	17.5	6
2521-AC	1/8×3/8	20	18.5	6
2521-BB	1/4×1/4	17	19.5	8
2521-BC	1/4×3/8	20	20.5	8
2521-BD	1/4×1/2	24	24.5	8
2521-CC	3/8×3/8	20	21.5	9
2521-CD	3/8×1/2	24	25.5	9
2521-DD	1/2×1/2	24	26.5	10

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size, and required durability.
This Female Thread Reducer Bushing reduces the size (inner diameter) of a pipe by deburring, cleaning, and reaming any burrs from a pipe after installation. It connects and isolates tubing/piping with female thread.
This Female Thread Reducer Bushing (T316 stainless steel) is designed to fit the connector threads 2"-14 NPS and connect pipe ends. This part has a connection type of bevel, with left-handed female threads and right-handed male threads. This can also be used on a pipe fitting to change the direction of flow.
