Stainless Steel Pipe Hex Nipple 2520

Maximum working pressure of 150 psi at 70 degrees F,Material: 304 stainless steel
Shape:Reducer Bushing(Male x Female),Connection:NPT-NPT,Measurement:optional
NPT thread for creating tighter seals than straight threads
It has male NPT threads on one end and female NPT threads on the other for connecting to a female and a male threaded pipe or fitting.
This adapter fitting connects pipes or fittings with different end types, diameters, or materials

Stainless Steel Pipe Hex Nipple 2520 DETAILS

Typical Application:
Grease,refrigeration,instrumentation and hydraulic systems.fuel

Advantages:
Dryseal pipe threads (BSPT(R)/BSP(G).Large range of sizes and configurations

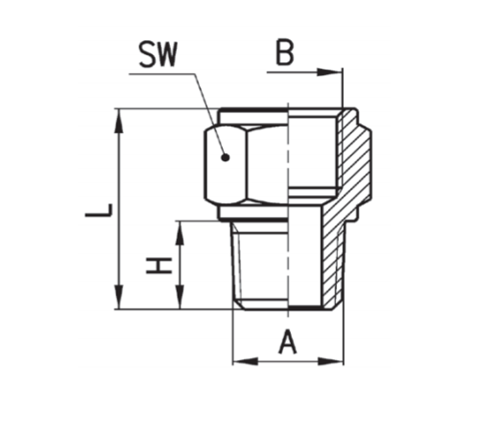

PART#	Thread size A×B	S.W	L	H
2520-AA	R1/8×G1/8	13	17.5	7.5
2520-AB	R1/8×G1/4	17	19.0	7.5
2520-AC	R1/8×G3/8	20	20.0	7.5
2520-BB	R1/4×G1/4	17	22.5	11.0
2520-BC	R1/4×G3/8	20	23.5	11.0
2520-BD	R1/4×G1/2	24	27.5	11.0
2520-CC	R3/8×G3/8	20	24.0	11.5
2520-CD	R3/8×G1/2	24	28.0	11.5
2520-DD	R1/2×G1/2	24	30.5	14.0
