Stainless Steel Reducer Hex Bushing 2530

Stainless Steel Reducer Hex Bushing 2530

Stainless Steel Reducer Hex Bushing fitting with male National Pipe Taper (NPT) threads on the outside and female NPT threads on the inside for connecting two pipes of different sizes. It has NPT threads for creating a tighter seal than straight threads and a hexagonal head for increased leverage and use with a wrench during installation and disassembly. This bushing is made of steel and has a galvanized finish to provide greater rust resistance than iron and can be used for water, steam, and air applications. The class 150 hex bushing meets specifications ASTM A53 and ASME B 1.20.1 for quality assurance. Class is a standard relating to tolerance, construction, dimension, and wall thickness, but it is not a direct measurement of maximum working pressure.

Contact Us

Stainless Steel Reducer Hex Bushing 2530 DETAILS

Typical Application:
Grease,refrigeration,instrumentation and hydraulic systems.fuel

Advantages:
Dryseal pipe threads (BSPT(R)/BSP(G).Large range of sizes and configurations

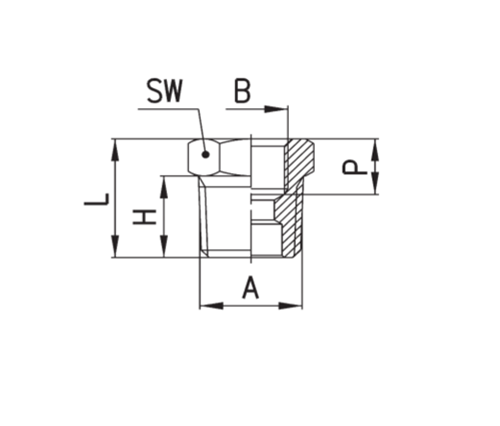

PART#

Thread size A×B

S.W

L

H

2350-BA

R1/4×G1/8 14 16.0 11

2350-CA

R3/8×G1/8 17 16.5 11.5

2350-CB

R3/8×G1/4 17 19.5 11.5

2350-DB

R1/2×G1/4 22 19.5 14.0

2350-DC

R1/2×G3/8 22 19.5 15.0

2350-EC

R3/4×G3/8 22 23.0 16.5

2350-ED

R3/4×G1/2 27 23.5 16.5

2350-HD

R1"×G1/2 34 27.0 19.0
