Stainless Steel Hex Nipple S3325
  • Stainless Steel Hex Nipple S3325
  • Stainless Steel Hex Nipple S3325

Stainless Steel Hex Nipple S3325

Hex nipple for connecting two threaded pipes or fittings and extending pipe length, hexagonal middle section for tightening with a wrench.
Male NPT threads for connecting to female threaded pipes.
Forged Brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability.

Typical Application:
Grease, refrigeration, instrumentation and hydraulic systems. Fuel,
LP and natural gas available on special order

Contact Us

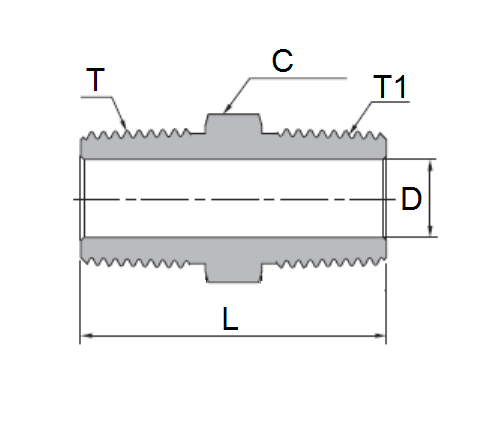

SPECIFICATIONS

Reference Part No:
PHN-NS  -  HN

PART#

Thread size(T×T1)

C

D

D1

L

S3325-11

1/16×1/16

5/16

.120

.120

1.00

S3325-A1

1/8×1/16

7/16

.120

.120

1.00

S3325-AA

1/8×1/8

7/16

.190

.190

 1.00

S3325-BA

1/4×1/8

9/16

.190

.190

1.22

S3325-BB

1/4×1/4

9/16

.280

.280

1.40

S3325-CA

3/8×1/8

11/16

.190

.190

1.25

S3325-CB

3/8×1/4

11/16

.280

.280

1.43

S3325-CC

3/8×3/8

11/16

.380

.380

1.43

SS3325-DA

1/2×1/8

7/8

.470

.190

1.47

S3325-DB

1/2×1/4

7/8

.470

.280

1.62

S3325-DC

1/2×3/8

7/8

.380

.380

1.62

S3325-DD

1/2×1/2

7/8

.470

.470

1.84

S3325-EB

3/4×1/4

1-1/16

.620

.280

1.65

S3325-EC

3/4×3/8

1-1/16

.620

.380

1.78

S3325-ED

3/4×1/2

1-1/16

.620

.470

1.84

S3325-EE

3/4×3/4

1-1/16

.620

.620

1.84

S3325-HB

1"×1/4

1-3/8

.880

.280

1.94

S3325-HC

1"×3/8

1-3/8

.880

.380

1.97

S3325-HD

1"×1/2

1-3/8

.880

.470

2.13

S3325-HE

1"×3/4

1-3/8

.880

.620

2.13

S3325-HH

1"×1"

1-3/8

 .880 .880

2.32

The hex nipple is a fitting for connecting two threaded pipes or fittings and extending pipe length. Hexagonal middle section for tightening with a wrench.

Our Hex Connectors are ideal for connecting male NPT threads to female threaded pipes. The forged brass construction gives this hex nipple the strength and durability to withstand the demands of everyday use in high corrosion environments, while avoiding any loss of performance due to magnetic permeability.
