284 Push‑on Hose Barb to Female SAE 45° Swivel

284 Push‑on Hose Barb to Female SAE 45° Swivel

Advantages:
Push‑on Hose Fittings are machined from the
highest quality brass or stainless steel. The barbs are
specifically engineered to work in conjunction with the
l.D. and braid angle of Push‑on Hose, ensuring a tight
connection without clamps.

Assembly:
Push‑on Hose Fittings are designed only for use with
Push‑on Hose. Do not use with any other style or
manufacturer of hose.

Assembly Instructions:
■■ Cut hose cleanly and squarely to length.
■■ Lubricate hose l.D. and barbs with light oil or soapy water.
■■ Push the hose onto the fitting until it bottoms against
     the yellow stop ring. This ensures that all of the
     barbs are engaged with the hose and will also help
     keep the end of the hose from fraying.

Pressure Range
Limited by hose l.D

Reference Part No:
Reference Part No:
100S-4  -  KA-NS  -  684 -  934  -  HSF  -  284  -  307  -  29AEPO  - P990-H  -  728  -  30882

Contact Us

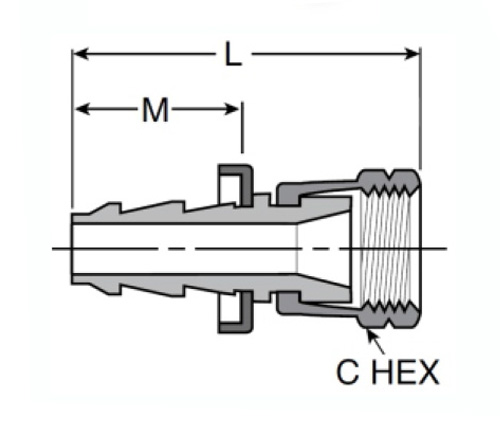

SPECIFICATIONS

PART#

HOSE I.D×45° Female Flare

UNF Thread

C

M

L

284-4-4

1/4×1/4

7/16-20

7/16

.77

1.45

284-4-5

1/4×5/16

1/2-20

5/8

.77

1.59

284-4-6

1/4×3/8

5/8-18

3/4

.77

1.60

284-5-5

5/16×5/16

1/2-20

5/8

.87

1.60

284-5-6

5/16×3/8

5/8-18

3/4

.87

1.60

284-6-6

3/8×3/8

5/8-18

3/4

.87

1.75

284-6-8

3/8×1/2

3/4-16

7/8

.87

1.85

284-8-6

1/2×3/8

5/8-18

3/4

1.05

1.85

284-8-8

1/2×1/2

3/4-16

7/8

1.45

1.77

284-10-10

5/8×5/8

7/8-14

1"

1.00

2.35

284-12-12

3/4×3/4

1-1/16-14

1"-1/4

1.45

2.42

Bolt-on Push-On Hose Barb to Female SAE 45° Swivel. 100S-4 This fitting is designed for use with spiral wound and reinforced hoses. The heavy duty construction will provide long life and dependable service. They are available in brass and nylon materials, with various pressure ranges up to 4000 psi (275 bar), machined from beryllium copper alloy for superior strength and durability. The benefits include: Excellent flow capability and low pressure drop,Corrosion resistant brass material, High tensile strength nylon material has excellent resistance to chemicals, acids, alkalines and salt spray.
