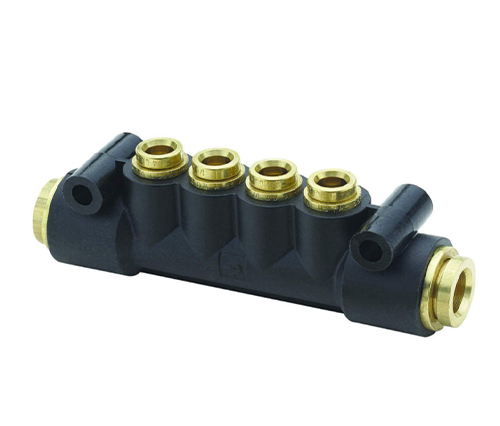

24M Presto Manifold

Product Features:
■■ Brass Collet
■■ Buna N O-ring
■■ Stainless Steel Tube Support
■■ Meets D.O.T. FMVSS571.106
■■ Meets SAE J2494-3
■■ Composite Body – Strong, Lightweight,Compact and Impact Resistant
■■ Plug-in configurations

Markets:
■■ Heavy Duty Truck
■■ Trailer
■■ Mobile

Applications:
■■ Air Brakes
■■ Air Tanks
■■ Air Ride
■■ Sliders
■■ Tire Inflation
■■ Primary & SecondaryAir Lines
■■ Cab Controls

SPECIFICATIONS

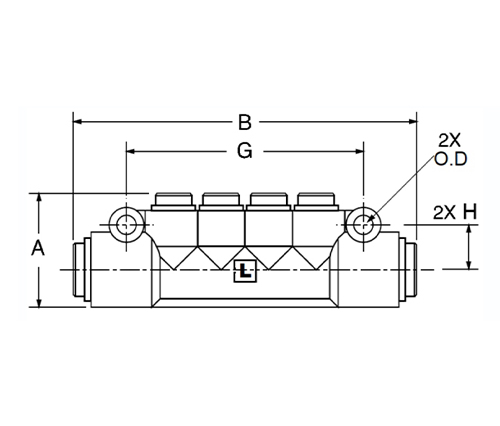

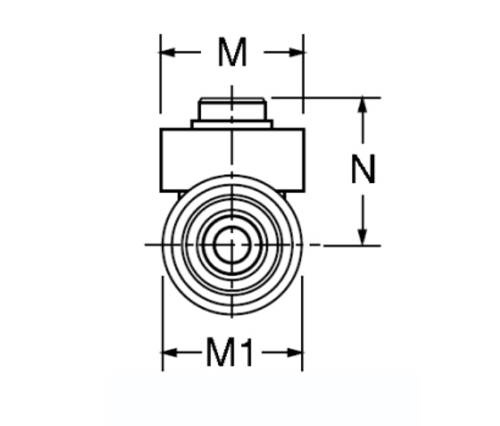

PART No.	Tube O.D lnlet	Tube O.D Outlet	A	B	D	G	H	M	M1	N
24M-4-4	1/4	1/4	1.33	3.98	.21	2.75	.53	.90	.88	.89
24M-6-4	3/8	1/4	1.33	4.00	.21	2.75	.53	.90	.88	.89
24M-6-6	3/8	3/8	1.65	6.49	.22	4.55	.60	1.02	1.02	1.33
24M-8-8	1/2	1/2	1.65	6.49	.22	4.55	.60	1.02	1.02	1.33
24M-8-6-4-4-6-8	1/2	3/8&1/4	1.65	6.49	.22	4.55	.60	1.02	1.02	1.17

24M Presto Manifold is built to provide easy, quick and reliable service. Composite body with strong, lightweight, impact resistant and compact design provides strength while reducing bulk. The 24M Presto manifold is designed to meet D.O.T FMVSS571.106, SAE J2494-3 requirements for high pressure applications. Its Plug & Play capabilities allow for maximum versatility in any application.
