372PTC Male Branch Tee Swivel

372PTC Male Branch Tee Swivel

Product Features:
■■ Brass Collet
■■ Buna N O-ring
■■ Stainless Steel Tube Support
■■ Meets D.O.T. FMVSS571.106
■■ Meets SAE J2494-3
■■ Composite Body – Strong, Lightweight,Compact and Impact Resistant
■■ Plug-in configurations

Markets:
■■ Heavy Duty Truck
■■ Trailer
■■ Mobile

Applications:
■■ Air Brakes
■■ Air Tanks
■■ Air Ride
■■ Sliders
■■ Tire Inflation
■■ Primary & SecondaryAir Lines
■■ Cab Controls

Contact Us

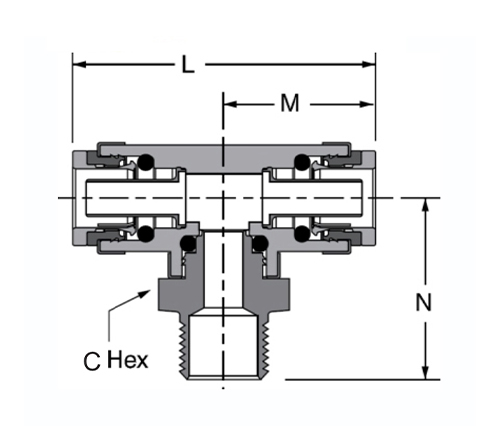

SPECIFICATIONS

Reference Part No:

PART# Tube T1&T2 Thread C L M N Price
372PTC-4A 1/4 1/8 9/16 1.42 .71 1.22
372PTC-4B 1/4 1/4 9/16 1.42 .71 1.37
372PTC-4C 1/4 3/8 3/4 1.42 .71 1.37
372PTC-6A 3/8 1/8 3/4 1.99 .99 1.17
372PTC-6B 3/8 1/4 3/4 1.99 .99 1.32
372PTC-6C 3/8 3/8 3/4 1.99 2.27 1.32
372PTC-8B 1/2 1/4 15/16 2.25 1.13 1.39
372PTC-8C 1/2 3/8 15/16 2.25 1.13 1.39
372PTC-8D 1/2 1/2 15/16 2.25 1.13 1.58
372PTC-10D 5/8 1/2 1.16 2.82 1.1 1.80

372PTC Male Branch Tee Swivel. A Male Tee is a short piece which allows for two branch lines to be connected together. They are found in many applications, such as air tanks used to provide compressed air for pneumatic systems and vehicle primary air lines. The 371PTC Male Branch Tee has a self-sealing Buna N O-ring with the capacity for handling higher pressure applications.
