1369  Air Brake Compression Male Elbow

1369 Air Brake Compression Male Elbow

AB Advantages
Easy to assemble, no flaring required. Extruded from CA 360 or CA
345 brass. Readily available in broad selection of configurations and
sizes. AB fittings are pre-applied with Locite Vibra-Seal® 516 on all male
pipe threads.
Specifications
AB fittings meet DOT FMVSS571.106 performance specifications
when assembled with SAE J844 nylon tubing. Meets functional requirements of SAE J246.
Applications
Use with copper tubing in air brake systems. Air Brake bodies are interchangeable
use with SAE J844 nylon tubing.
Working Pressure Ranges
Up to 400 psi.
Temperature Ranges
Fittings will withstand variations from -65° to +250°F.
Assembly Instructions
■■ Cut tubing squarely and remove burrs.
■■ Slide nut and sleeve onto tubing.
■■ Insert tubing into fitting until bottomed on seat. The nut should be
screwed down finger-tight, then wrench-tightened as indicated below

Contact Us

1369 Air Brake Compression Male Elbow DETAILS

Typical Application:
Air brake systems

Conformance:
Meets specifications and standards of SAE and SAE (FMVSS571 106)

Reference Part No:
69AB  -  1369  -  269A  -  S269AB

PART#

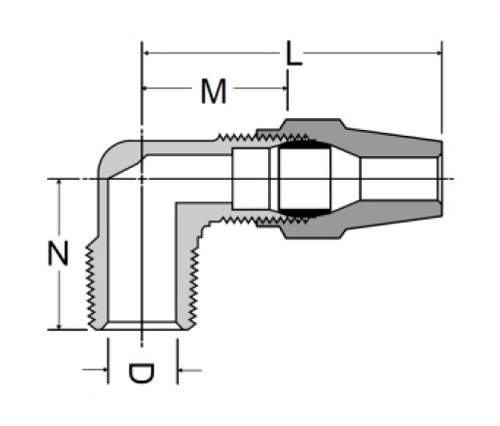

TUBE  O.D × MALE  NPTF

M

N

D

1369-4A

1/4×1/8

.62

.66

.219

1369-4B

1/4×1/4

.68

.87

.312

1369-40

1/4×3/8

.73

.86

.438

1369-6A

3/8×1/8

.73

.75

.562

1369-6B

3/8×1/4

.79

.92

.312

1369-6C

3/8×3/8

.84

.91

.438

1369-6D

3/8×1/2

.94

1.10

.562

1369-8B

1/2×1/4

.86

.99

.312

1369-8C

1/2×3/8

.93

.99

.438

1369-8D

1/2×1/2

1.03

1.18

.562

1369-10C

5/8×3/8

1.00

1.05

.438

1369-10D

5/8×1/2

1.09

1.24

.562

1369-12D

3/4×1/2

1.19

1.32

.562

1369-12E

3/4×3/4

1.26

1.32

.760



*Ref.SAE No.120202 BA
