How to choose copper card sleeve pipe joint

Release time:2020-08-12
Abstract:

1. Copper card sleeve type terminal pipe joint The func […]

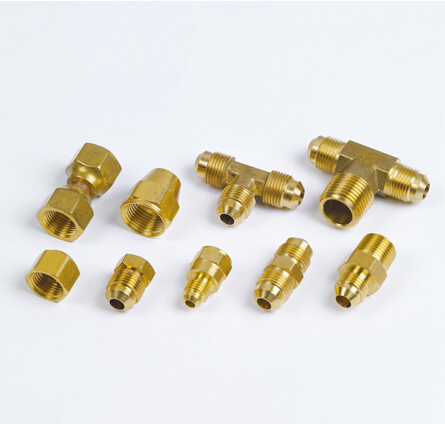

1. Copper card sleeve type terminal pipe joint
The function of the copper ferrule type through terminal joint is mainly used for the connection of instrument equipment and measuring pipeline. There are many types of copper ferrule type straight terminal joints. The outer diameter D0 of the pipe is: φ6mm, φ8mm, φ10mm, φ12mm, etc. The thread specifications are: M10×1, M12×1, M14×1.5, M16×1.5, M18 ×1.5, M20 ×1.5, 1/2NPT, ZG1/2″, ZG1/4″, etc.



The appearance structure of the copper card sleeve type through terminal joint is shown in Figure 1. The processing material is H62 (chrome-plated surface). The nominal pressure is 1.0MPa, and the operating temperature is not more than 150°C (the operating temperature of nylon tube is normal temperature).

Scope of application: copper pipe, plastic pipe, nylon pipe.



Special attention should be paid to: the connection between the source valve and the equipment and pipeline should not adopt the compression fitting. This is because the connection between the source valve, the equipment and the pipeline is a critical part, and the absence of a ferrule type joint here helps to ensure the connection quality and facilitate maintenance and repair. According to experience, in actual use, the processing quality of this joint and the size of the pipe are required to be very strict, otherwise the joint will be leaked due to inadequate sealing.

2. Copper ferrule type straight middle joint

The copper ferrule type straight-through intermediate joint is used to connect the air source, signal pipeline and the air source and signal pipeline. There are many types of copper ferrule-type straight middle joints, and the outer diameter D0 of the pipe is: φ6 mm, φ8 mm, φ10 mm, φ12 mm, etc. Figure 2 shows the appearance structure of the copper card sleeve type through middle joint. The processing material is H62 (chrome-plated surface). The nominal pressure is 1.0MPa, and the operating temperature is not more than 150℃ (the operating temperature of nylon tube is normal temperature). Scope of application: copper pipe, plastic pipe, nylon pipe.



Special attention should be paid to: the connection between the source valve and the equipment and pipeline should not adopt the compression fitting. This is because the connection between the source valve, the equipment and the pipeline is a key part, and the absence of a ferrule type pipe joint is beneficial to ensure the quality of the connection and facilitate maintenance and repair. According to experience, in actual use, the processing quality of this joint and the size of the pipe are required to be very strict, otherwise the joint will be tightly sealed and leak.
